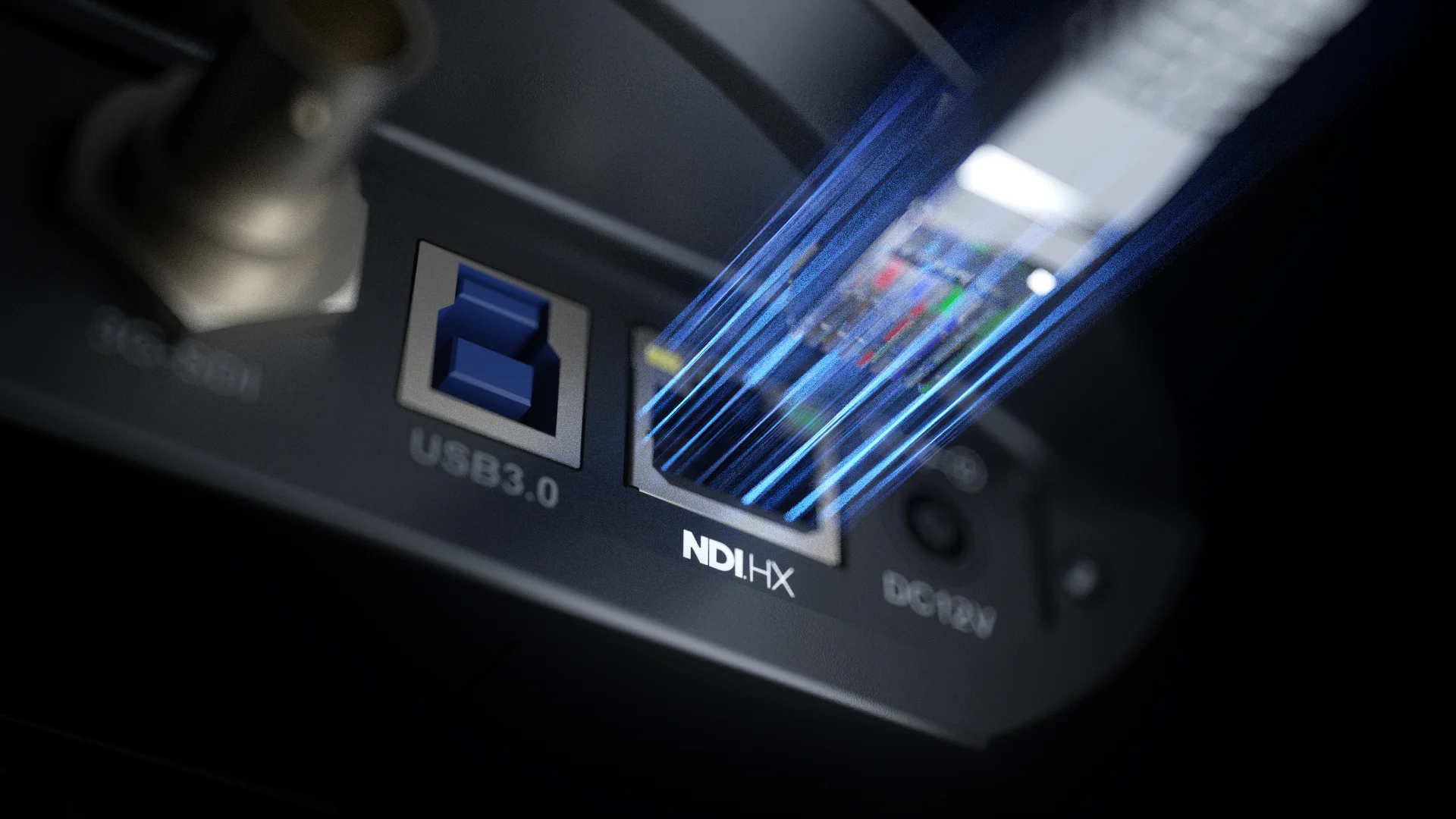

NDI®HX Integration: Streamline Your Workflow
NDI®HX, a variation of the NDI protocol optimized for lower bandwidth situations, ensures high-quality, real-time video transmission without the need for encoder and decoder. By utilizing existing network infrastructure, NDI®HX streamlines your workflow, reduces costs, and ensures smooth video production, even on limited bandwidth networks.
FHD Resolution
Boasting a robust image processor and a 1/2.8-inch 2.4MP sensor, Drive+ N 12/20 delivers FHD video resolution of 1920*1080p60, ensuring clear, sharp, lifelike images, even in low-light environments.

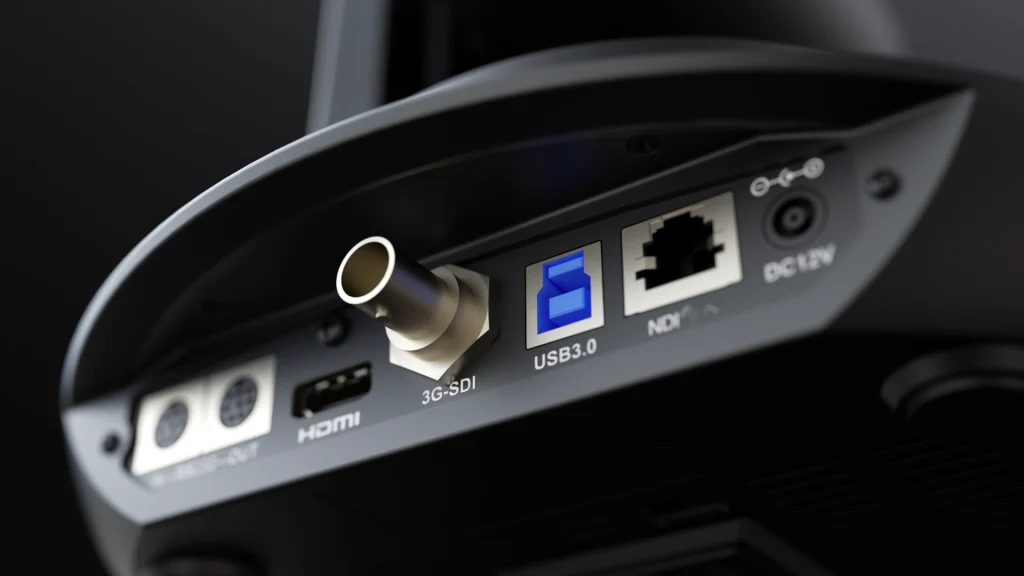

NDI ®HX/3G-SDI/HDMI/USB 3.0 Available
In addition to NDI®HX, Drive+ N simultaneously outputs images via 3G-SDI, HDMI, and USB 3.0. 3G-SDI and HDMI are for transitional video production, while the USB output can function as a high-end webcam.
12x/20x Optical Zoom
Drive+ N features a 12X optical zoom lens with a 72.5-degree wide angle or a 20X optical zoom lens with a 60-degree field of view. Its proprietary focusing algorithm ensures fast, precise focus even during zoom or movement.

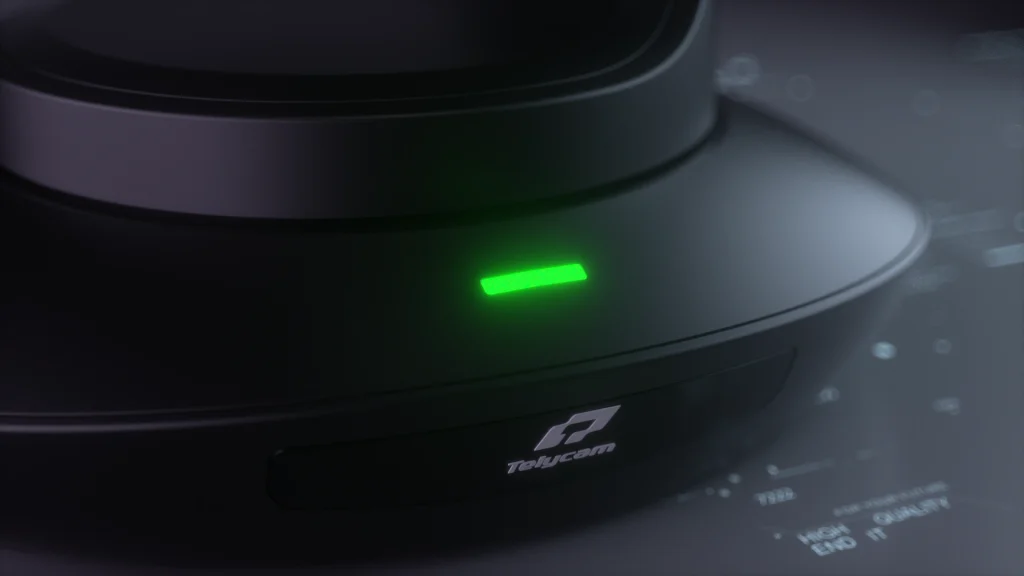

Tally Lights for Effortless Production Cues
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output. Drive+ N series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
Specifications
Camera
| Drive+ N 12X | Drive+ N 20X | |
|---|---|---|
| Part No. | TLC-300-IP-12(NDI) | TLC-300-IP-20(NDI) |
| Sensor | 1/2.8 inch, 2.4MP UHD CMOS sensor | |
| Optical Zoom | 12x | 20x |
| Lens | f=3.92~47.32mm, F1.8~F2.8 | f =5.2~98mm, F1.5~F3.0 |
| Horizontal View Angle | 72.5°(Wide)~6.3°(Tele) | 55.8°(Wide)~3.2°(Tele) |
| Vertical View Angle | 42.72°~3.66° | 32.2°~1.8° |
| Diagonal View Angle | 78.58°~7.42° | 61.0°~3.64° |
| Minimum Working Distance | 1.0m | 1.0m |
| S/N Ratio | ≥50dB | |
Video Format
| HDMI | 1920×1080 P60/50/30/25/59.94/29.97/24/23.98 1920×1080 I60/50/59.94 1280×720 P60/50/30/25/59.94/29.97 | |
|---|---|---|
| NDI®|HX | 1920*1080@3~60;1280*720@3~60;
1024*576@3~60; 640*360@3~60 (low bandwidth mode) | |
| 3G-SDI | 1920×1080 P60/50/30/25/59.94/29.97/24/23.98 1920×1080 I60/50/59.94 1280×720 P60/50/30/25/59.94/29.97 | |
| USB3.0 | 1920*1080P60/50/30/25(USB 3.0);
1280*720P60/50/30(USB 3.0); 1280*720P25(USB 3.0&USB 2.0); 1024*576P30(USB 3.0&USB 2.0); 960*540P30(USB 2.0);640*360P30(USB 2.0);512*288P30(USB 2.0) | |
Image Parameters
| Drive+ N 12x | Drive+ N 20x | |
|---|---|---|
| Noise Reduction | 2D & 3D | |
| Minimum Lux | 0.7 Lux (50 IRE Max AGC, 1/30, F1.8) | 0.7 Lux (50 IRE Max AGC, 1/30, F1.5) |
| White Balance | ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent | |
| Exposure | Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority | |
| Anti-Flicker | OFF, 50Hz, 60Hz | |
| Image Flip | Supported | |
| Mirroring | Supported | |
| Focus | Auto / Manual | |
| Iris | Auto / Manual | |
| Electronic Shutter | Auto / Manual | |
| Gamma | Supported | |
| Backlight Compensation | Supported | |
IP Streaming
| Video Encoding | H.264 / H.265 | |
|---|---|---|
| Bitrate Control | Variable bitrate (VBR), Constant bitrate (CBR) | |
| Bitrate Range | 1024Kbps~16384Kbps | |
| Network Port Speed | 1000M | |
| Protocol | NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML | |
Pan / Tilt Movement
| Preset | Remote controller: 10; Serial port: 256; Accuracy: 0.1° | |
|---|---|---|
| Pan Rotation Angle | -170° ~ +170° | |
| Tilt Rotation Angle | -30° ~ +90° | |
| Pan Rotation Speed | 0.1° ~ 120°/s | |
| Tilt Rotation Speed | 0.1° ~ 80°/s | |
I/O Interface
| Control Port | RS232, RS485, NDI®HX, USB 3.0(UVC1.5), USB 2.0(UVC1.1) | |
|---|---|---|
| Video Port | NDI®HX, HDMI, 3G-SDI, USB3.0 | |
| Tally | Supported | |
| PoE+ | Supported | |
| Daisy Chain | Supported | |
General
| Input Voltage | DC 12V, PoE+ (IEEE 802.3at) | |
|---|---|---|
| Operating Temperature | -10°C ~ 50°C | |
| Operating Humidity | ≤80% | |
| Dimension (L×W×H) | 220mmx190mmx173mm | |
| Net Weight | 1.35kg | |
| Color | Black / White | |
